Steel Temporary Guardrail Systems Roll Forming Machine
Steel Temporary Guardrail Systems Roll Forming Machine, also known as Temporary Guardrail Systems Machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.
Steel Temporary Guardrail Systems Roll Forming Machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.
Uncoiler--- Punching---Roll forming---Cutting---Packing table.
Detailed information of Steel Temporary Guardrail Systems Roll Forming Machine:
Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.
2. Loading ability:5000kg
3. Hydraulic power:3kw
Feeding and leveling part for Steel Temporary Guardrail Systems Roll Forming Machine
1. Roller material after quenching
2. 9 rows station for leveling: 4 up 5 down
3. The diameter of raw material 95mm ,45 steel after quenching
4. Feed a side wheel GCR15 raw materials, after quenching
Punching and shearing part
1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt
2.Shearing blade material:Cr12 after quenching.
3. Shear error: +/- 2mm
Roll forming machine
Advantage: to make sure long time using, working steady and high speed.
1. Main-length: about 20.5*1.2*1.5m
2. Machine weight: 15.5 Ton
3. Voltage: customer choice
4. Fix wheel types: medium plate
5. Frame: 400# steel
6 Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining
7.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt
8. Rolling station:20 stations
Shearing blade material:Cr12 after quenching.
Shear system: automatic hydraulic shear system, advanced, no waste edge, high security.
Shear error: + 2mm
We use PLC and encoder. This type is higher than the photoelectric measurement.
2.Hydraulic oil type: 46#
3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.
1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.
2.Panasonic PLC, Panasonic inverter
3. automatic fixed length
4. automatic counting
Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

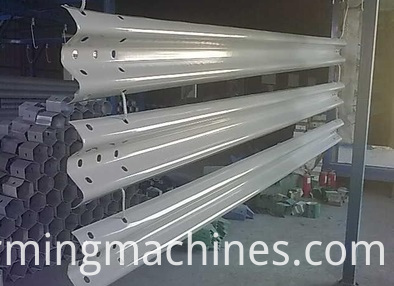

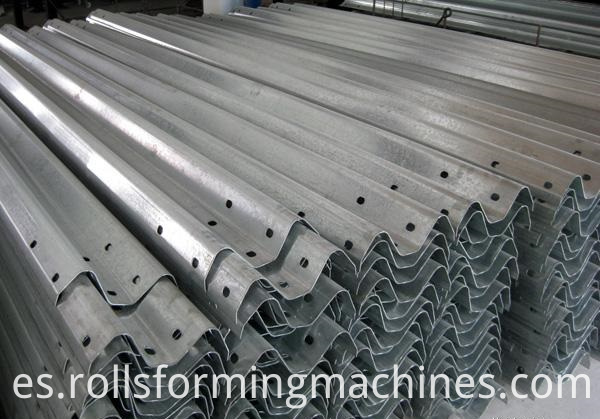

Some pictures for Steel Temporary Guardrail Systems Roll Forming Machine:
