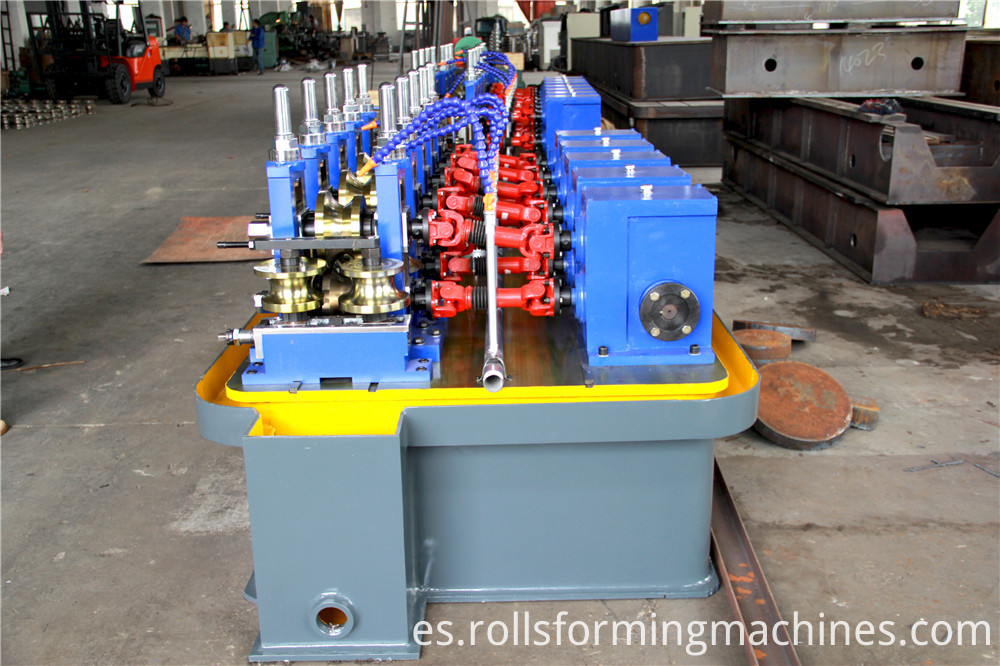

HG50 Contruction pipe roll forming steel pipe machine

HG50 Contruction pipe machine-roll forming steel pipe machine

Specification of steel pipe machine HG50:

1. Pipe diameter: Ø10–Ø60mm
Pipe Thickness: 0.5– 3.0mm
2. Square Pipe: 10X10mm –60X60mm
Rectangle Pipe: 20X40mm –40X60mm
Pipe Thickness: 0.5 –3.0mm
3. Pipe Length: 6-12m
4. Length Tolerance: 0-6mm
b) SteelTape Specification
1. Material: Low Carbon steel (σb≤500Mpa,σs≤235Mpa)
2. Steel Tape: Inner diameter: Φ470-Φ510mm
Outer diameter: Φmax=1500mm
Strip steel width: 40mm-240mm
Strip steel thickness: 0.8mm-3.0mm
The maximum weight: 2.0 tons

c) Electricity
1. Dynamic power: AC380V±10%, 3phases, 50Hz±1.0%
2. Control Power: AC220V±10%, one phase, 50 Hz ±1.0%
d) Electric installed capacity: appro. 250KW
e) Cooling water
1. Reservoir for High Frequency equipment: 15 m³, one set
2. Reservoir for circulating cooling water: 15 m³, one set
f) Compressed air
1. Pressure: 0.4Mpa
2. Flow: 0.8m3/h
g) Production capacity
Annual output: 25000 ton, according to the yearly working days.daily working hours and the products.
h) Line speed: 30-90m/min
IV. Equipment makeup and main parameters of single unit:
1. Double-head un-coiler
1.1. Briefing: Rotary type to change coils easily, with a pneumatic brake
1.2. Parameters:
- Coil width: max.240mm
- Coil OD: max. Ø1500mm
- Coil ID: Ø 470- Ø 510mm
- Coil weight: max. 2.0 tons
1.3. Mandrel expansion by Pneumatic
1.4. Mandrel position rotation shall be manual

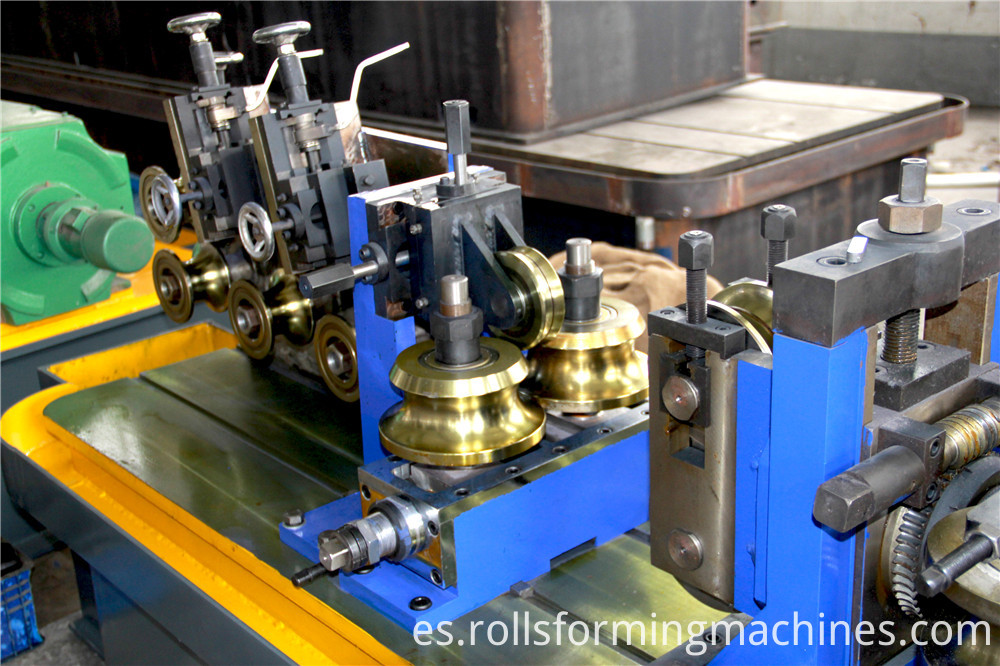

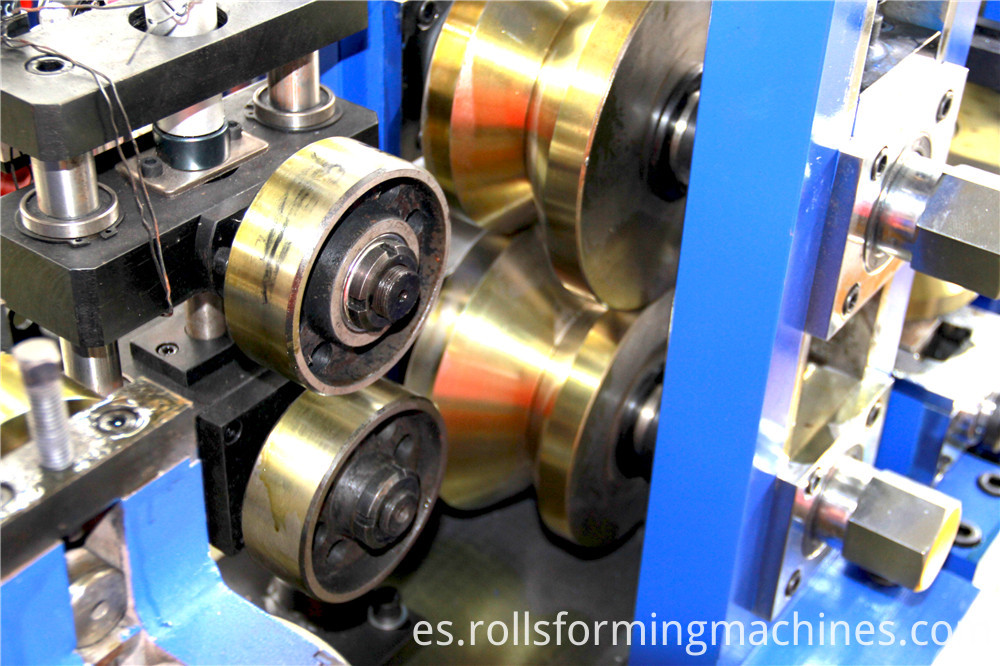

Forming & sizing section

4.1 Forming mill gearbox, universal joint

4.1.1 Mill entry flattener by five-roll passive levelling, one pair of sending roll, two pairs of vertical roll

4.1.2 Forming mill consists of:
- Driven stand: 7 sets (Horizontal)
- Driven stand shaft: Ø60mm
- Material of shaft: 40Cr
- Side roll stand: 8 sets(Vertical)
- Side roll stand shaft: Ø40mm
- Material of shaft: 40Cr
- Gear box & universal joint: 7 sets
- Material of gear box: cast steel
- Material of gear: 20CrMnTi
- Main motor: 55kW model: Z4-200-31 1 set
- Main redactor: ZLY224 1 set

4.2 Sizing mill gear box, universal joint
4.2.1 Sizing mill consist of:
- Driven stand: 5 sets (Horizontal)
- Driven stand shaft: Ø60mm
- Material of shaft: 40Cr
- Side roll stand: 5 sets(Vertical)
- Side roll stand shaft: Ø40mm
- Material of shaft: 40Cr
- Gear box & universal joint: 5 sets
- Material of gear box: cast steel
- Material of gear: 20CrMnTi
- Main motor: 55kW Model: Z4-200-31 1 set
- Main redactor: ZLY224 1 set
- 2 sets single head Turk`s head, with 4 rollers*2sets
- One speed testing roller with air cylinder for CNC flying saw

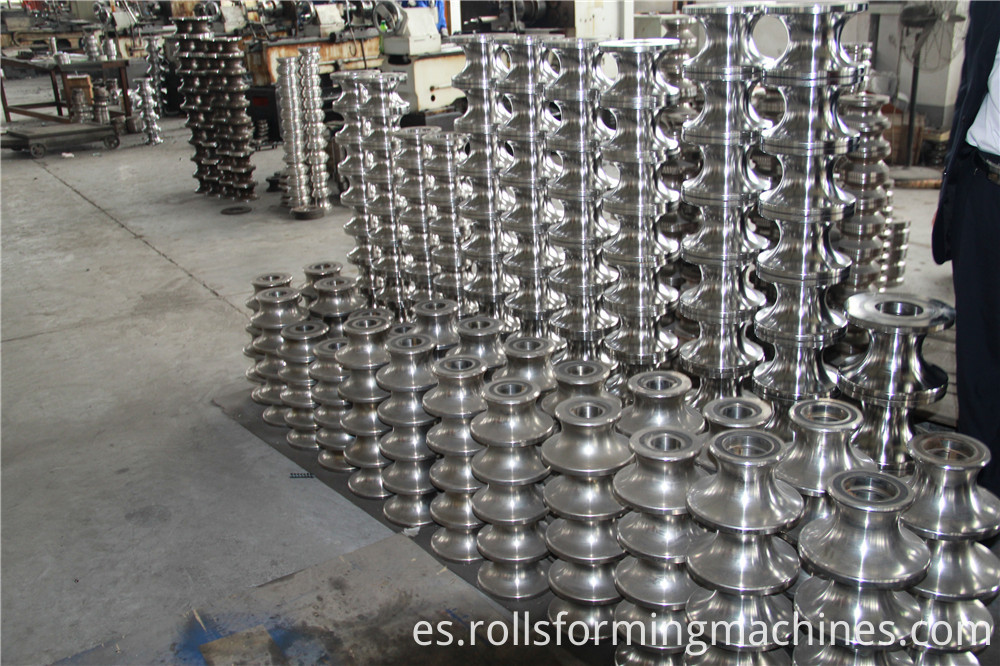

The following picture is the HG50 Welded Pipe Machine mold material.

Looking for ideal HG50 Contruction Pipe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Steel Pipe Machine are quality guaranteed. We are China Origin Factory of Welded Roll Forming Steel Pipe Machine. If you have any question, please feel free to contact us.
