Trapezoid Metal Sheet Forming Machine ZT36-129-889
Trapezoid Metal Sheet Forming Machine ZT36-129-889
Trapezoid Metal Sheet Forming Machine ZT36-129-889
Trapezoid Metal Sheet Forming Machine ZT36-129-889
Trapezoid Metal Sheet Forming Machine ZT36-129-889

Trapezoid Metal Sheet Forming Machine ZT36-129-889

Precio unitario: USD 12500 - 14500 / Set/Sets
Tipo de Pago: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Cantidad de pedido mínima: 1 Set/Sets
Plazo de entrega: 30 días

Contactar ahora Añadir al carrito

Información básica

    Modelo: ZT36-129-889

Información adicional

    Paquete: nude

    productividad: 30 sets per month

    Marca: Zhongtuo

    transporte: Ocean,Land

    Lugar de origen: cangzhou

    Capacidad de suministro: 30 sets per month

    Certificados : CE ISO9001

DDescripción

Trapezoid Metal Sheet Forming Machine ZT36-129-889

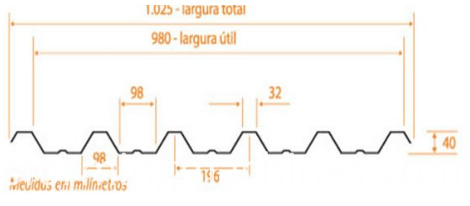

ⅠDrawings profile of roof tile:

Trapezoid Metal Sheet Forming Machine ZT36-129-889


Materials:

Material used : gavanized and galvalume

Formed width: 980mm

Wave height: 40mm

Material thickness: 0.43mm- 0.65mm

Material hardness: 195 mpa---350 mpa

Forming speed: 15m/min



Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Trapezoid Metal Sheet Forming Machine ZT36-129-889


1. Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system



Loading capacity

Uncoiling width

Inner diameter

5T

1250mm

450-550mm


Trapezoid Metal Sheet Forming Machine ZT36-129-889




Main specification

1) Coil inner diameter: 450-550mm

2) Max coil out diameter:1300 -1600 mm

3) Max coil width: 1250mm

4) Carrying capacity:10T

5 ) Hydraulic expansion

6 ) Automatically feeding

7) Hydraulic, inner tight

8) Hydraulic power : 3 kw Drive power:3kw

9) Size:2.7×1.3×1.8m(L×W×H)



2. Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,

parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

Trapezoid Metal Sheet Forming Machine ZT36-129-889





3. Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,

roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Trapezoid Metal Sheet Forming Machine ZT36-129-889


No.

Main parameter

1

Length of the main part

8500х1650х1500mm

2

Weight of main part

4.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)
4

Roller fixer

Middle plate welded

5 Frame

350 H steel welded

6 Frame thickness

15mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

12

Main power

5.5kw



4. Cutting device

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Trapezoid Metal Sheet Forming Machine ZT36-129-889



5. Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Trapezoid Metal Sheet Forming Machine ZT36-129-889




6. Products receiving tables.

1) It adopts welded steel and supported roller to transmit the products.

2) 3*0.9*0.6m

Trapezoid Metal Sheet Forming Machine ZT36-129-889






7. Controlling device

1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2) Other electric element are Delta

3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.


Screen
PLC
Text screen displayer
Taida DVP14ES from Taiwan

Trapezoid Metal Sheet Forming Machine ZT36-129-889


8. Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Origin

Power

Advanced hydraulic system from Taiwan

3kw

Trapezoid Metal Sheet Forming Machine ZT36-129-889


Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs



Trapezoid Metal Sheet Forming Machine ZT36-129-889


Ⅴ Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

within 45 working days after receipt of deposit.

Packing

Nude packing with 1*40HQ container

Warranty

One year, and we will provide the technical support for the whole life.

Installation

1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50 / person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)
