Steel W Beam Roll Forming Machine

Steel W Beam Roll Forming Machine, also known as crash barrier forming machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.

W beam roll forming machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

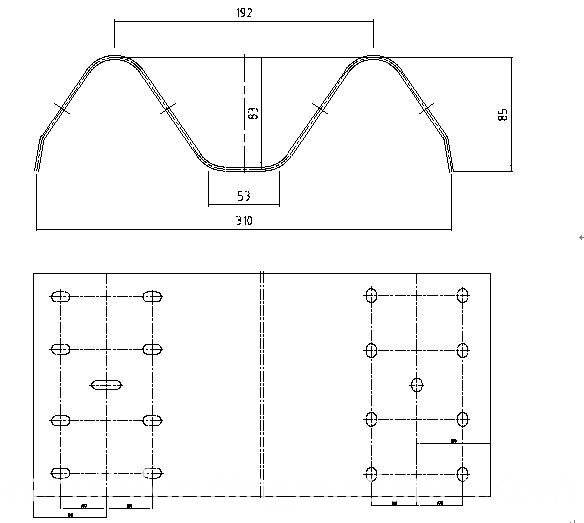

Highway Guardrail Forming Machine


Highway Guardrail Forming Machine

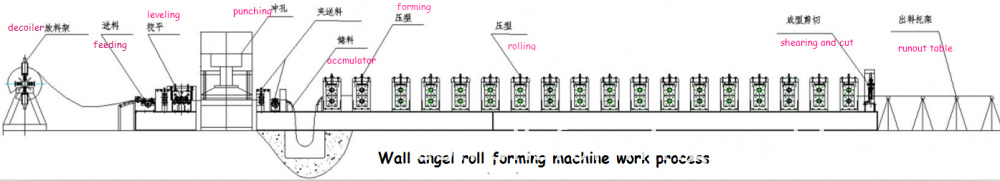

Working process:

Two Wave Highway Guardrail Machine

Detailed information of Steel W Beam Roll Forming Machine:

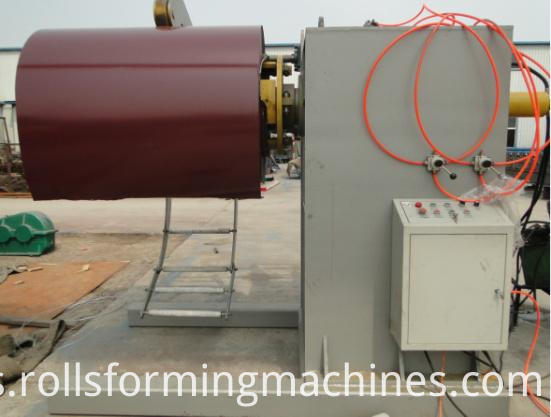

Hydraulic decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.

1.ID:500-550mm

2. Coil width:500mm

3. Loading ability:5000kg

4. Hydraulic power:3kw

5.Motor:3kw

Highway Guardrail Forming Machine

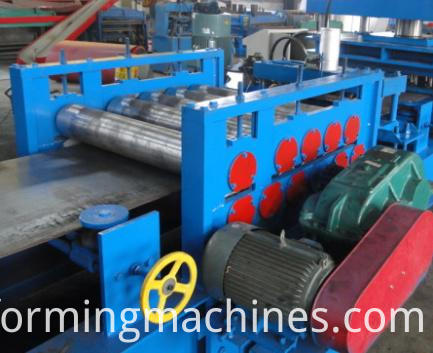

Feeding and leveling part

1. Roller material after quenching

2. 9 rows station for leveling: up 4 down 5

3. The diameter of raw material 95mm ,45 steel after quenching

4. Feed a side wheel GCR15 raw materials, after quenching

Guardrail Forming Machine

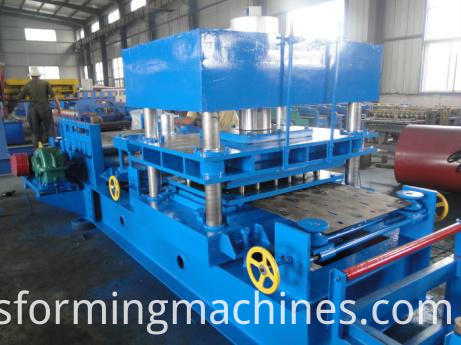

Punching and shearing part

1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt

2.Shearing blade material:Cr12 after quenching.

3. Shear error: +/- 1mm

Two Wave Highway Guardrail Forming Machine

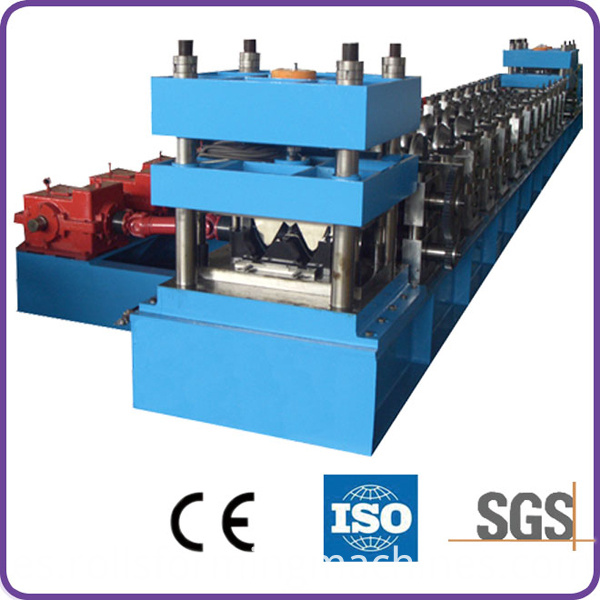

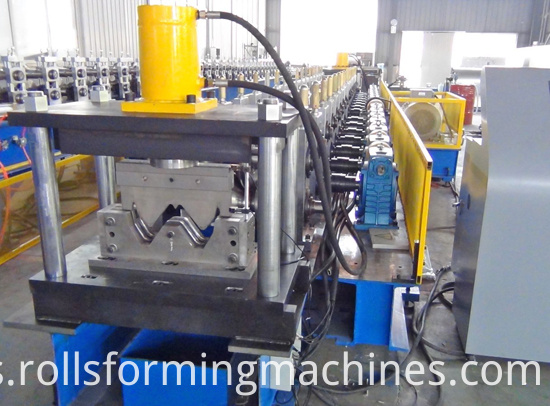

Roll forming machine

Advantage: to make sure long time using, working steady and high speed.

1. Main-length: about 20.5*1.2*1.5m

2. Machine weight: 15.5 Ton

3. Voltage: customer choice

4. Fix wheel types: medium plate

5. Frame: 400# steel

6. Transmission: Chain

7. Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining

8.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt

9. Rolling station:20 stations

10.Main power:45kw

W Beam Roll Forming Machine

Shearing system


Advantage: to make sure machine working speeds fast, accurate and steady.

Usage: controlled by PLC, driven by hydraulic power to shear accurate and accurately.

Shearing blade material:Cr12 after quenching.

Shear system: automatic hydraulic shear system, advanced, no waste edge, high security.

Shear error: + 2mm

We use PLC and encoder. This type is higher than the photoelectric measurement.

Component: it includes a set of tools, a hydraulic cabinet and a knife machine.

Steel W Beam Machine

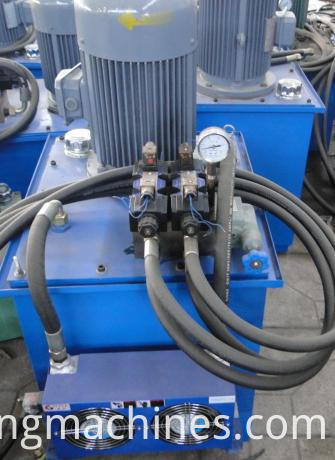

Hydraulic system

1.Power: 18.5kw

2.Hydraulic oil type: 46#

3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

Highway Guardrail Forming Machine

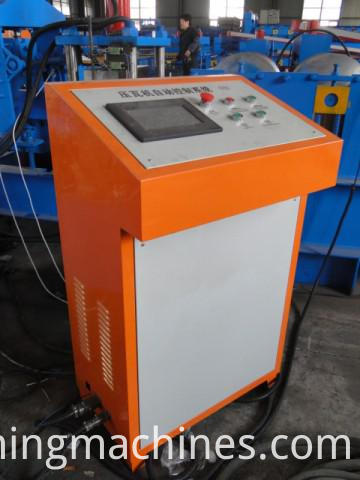

Electrical system

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.

2.Panasonic PLC, Panasonic inverter

3. automatic fixed length

4. automatic counting

Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

Two Wave Highway Guardrail Machine

Looking for ideal W Beam Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel W Beam Machine are quality guaranteed. We are China Origin Factory of W Beam Machine. If you have any question, please feel free to contact us.
