metal steel floor deck roll former

metal steel floor deck roll former

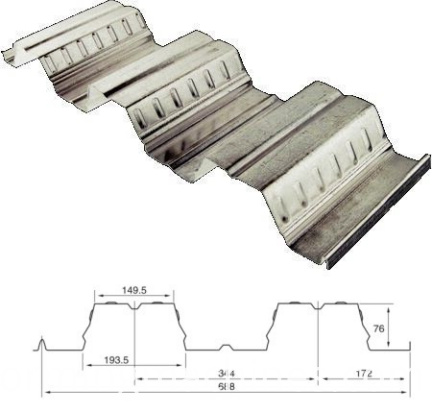

We are specialized in designing and building various steel floor plate decking roll forming machines,such as close-type steel Floor Deck Roll Forming Machine,3-waves steel deck floor Roll Forming Machine,2-waves with ribs steel floor deck roll forming machine etc. In modern time,people prefers to use steel instead of stone or cement for construction projects,such as the steel floor decks, because it is more convenient to fill the concrete into the steel floor deckings than to use the stone floor.

Technical Data for Main Parts on decking floor steel sheets roll forming machine:

Uncoiler: Manual Uncoiler

Thickness of Material: 0.7mm-1.2mm

Effective Width:600-900mm

Coil Weight: 5 Tons

Coil OD:1500mm

Coil ID:508--610mm

Feeding Guide OF STEEL FLOOR DECKING ROLL FORMING MACHINE:

2 Rollers to guide the material into the machine

Both ends of the flat roll adopt bearing structure.

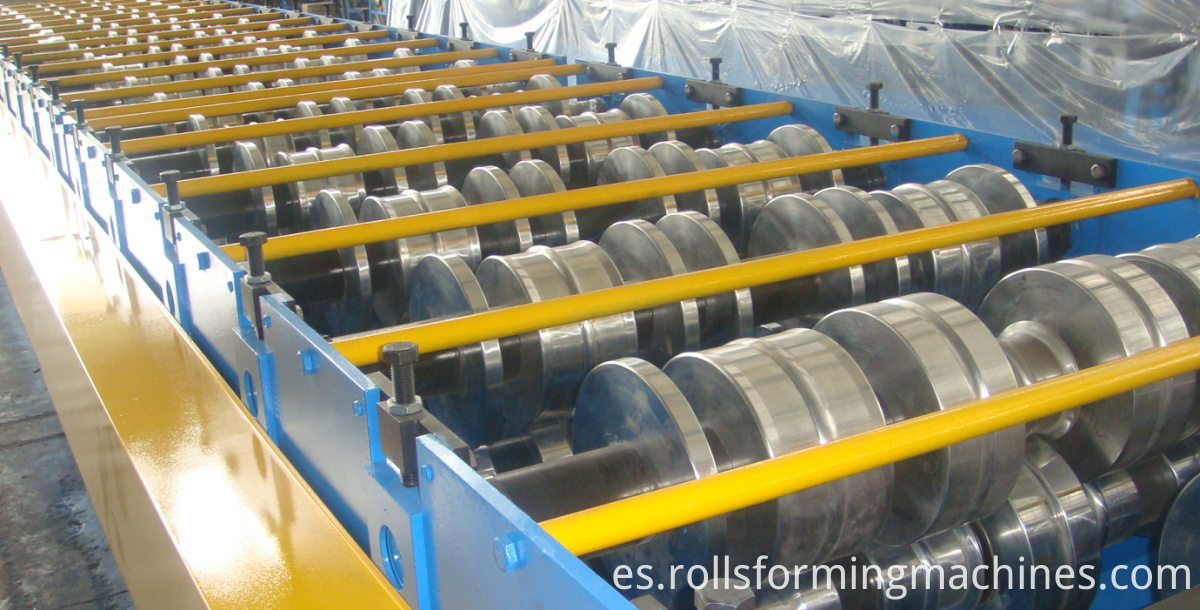

Roll Forming Machine (STEEL DECK FLOOR ROLL FORMING MACHINE)

Roller Stations: 28-36 stations

Diameter of Shaft: 70mm

Material of Shaft: 45# steel.

Material of roller: 45#steel with electroplating treatment after quenching treatment.

Forming speed: 8-12m/min

Siding Plate: 36 [H" Steel (Thickness 18mm).

Transmission: 1.0" Chains-bracket.

Bearing Model: 6210

Main Power: 2x11KW;

Overall Dimensions: 11500mmx1500mmx1300mm

Weight of the machine: Appro.14 Tons

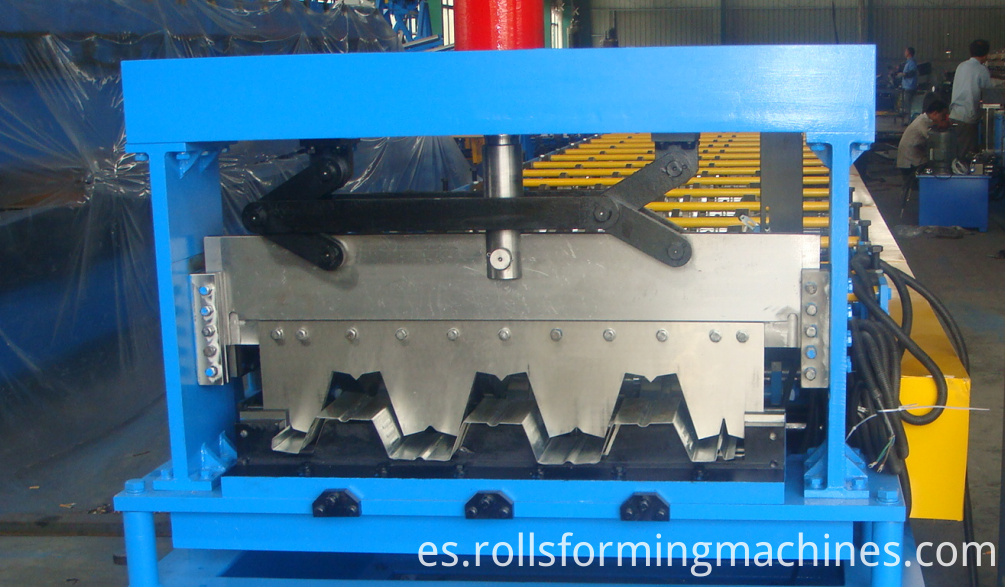

Cutting and Electrical Parts FOR STEEL FLOOR DECKING ROLL FORMING MACHINE:

Hydraulic Cutting: Automatically cutting according to the length and quantities the clients set on the touch screen

Hydraulic Power: 4KW

Material of Cutting Blades: Cr12 Steel

PLC Control Box: 700mmx1000mmx300mm

Computer Control System: Panasonic PLC.

Pressure of Hydraulic Station: ≧16Mpa
