High Quality Standard Roofing Panel Roll Forming Machine

    Tipo de Pago: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB
    Cantidad de pedido mínima: 1 Set/Sets
    Plazo de entrega: 30 días
Información básica

Modelo: ZT-004-037

Material Type: Pre-painted Steel Sheet

Material Thickness: 0.2-0.7mm

Yield Stress: 230-550MPa

Max. Forming Speed: 8-12 M/min

Roller Material: 45# Steel With Chrome Treatment

Driven Mode: Chain Transmission

Controller: PLC

Main Motor Power: 7.5kw

Hydraulic Motor Power: 5.5kw

Brand Of Converter: Schneider

Additional Info

Paquete: nude package

productividad: 30 sets per month

Marca: zhongtuo

transporte: Ocean,Land

Lugar de origen: cangzhou

Capacidad de suministro: 30 sets per month

Certificados : CE ISO9001

Descripción del producto

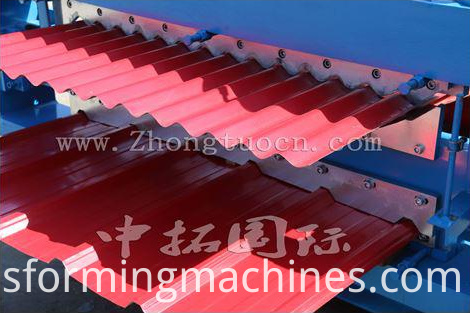

High Quality Standard Roofing Panel Roll Forming Machine

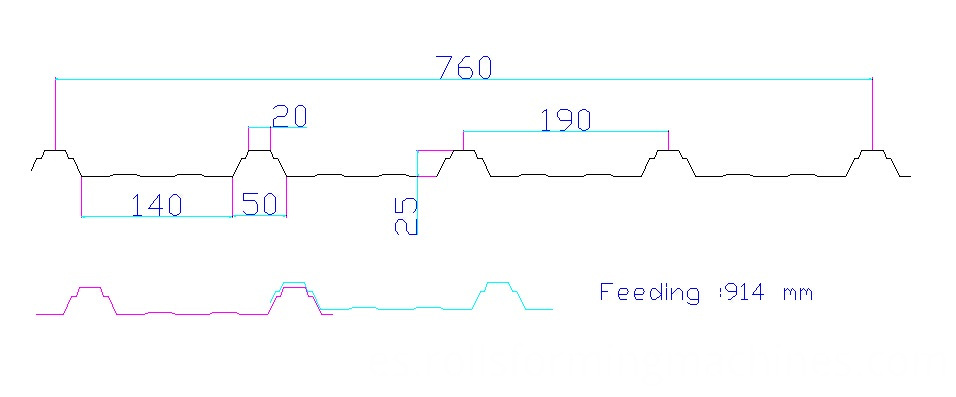

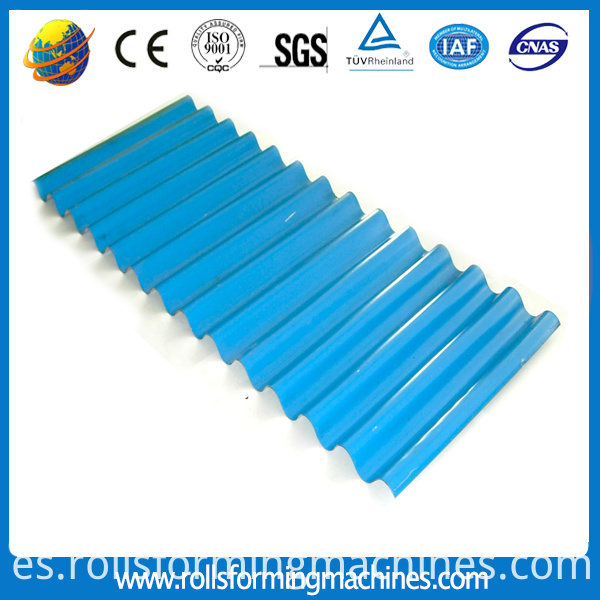

As a professional manufacturer,we can make the Roofing Panel Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed tile making machine, double layer roll forming machine and so on.Here is some profile drawings for you reference.



High Quality Standard Roofing Panel Roll Forming MachineHigh Quality Standard Roofing Panel Roll Forming Machine



Main features of each part

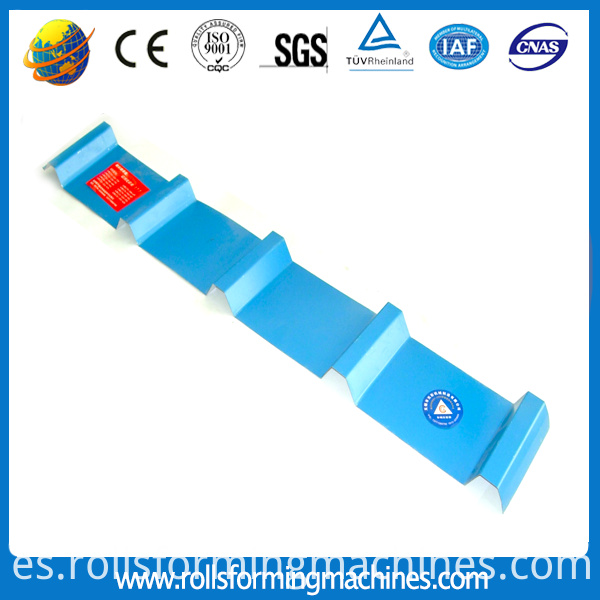

Drawing of tile:

High Quality Standard Roofing Panel Roll Forming Machine


Processing material: colored steel plate, galvanized plate.

Material thickness: 0.3- 0.8 mm

Material hardness: 195 mpa---350 mpa

Formed width:1020 mm

Forming speed: 12 m/min


High Quality Standard Roofing Panel Roll Forming Machine

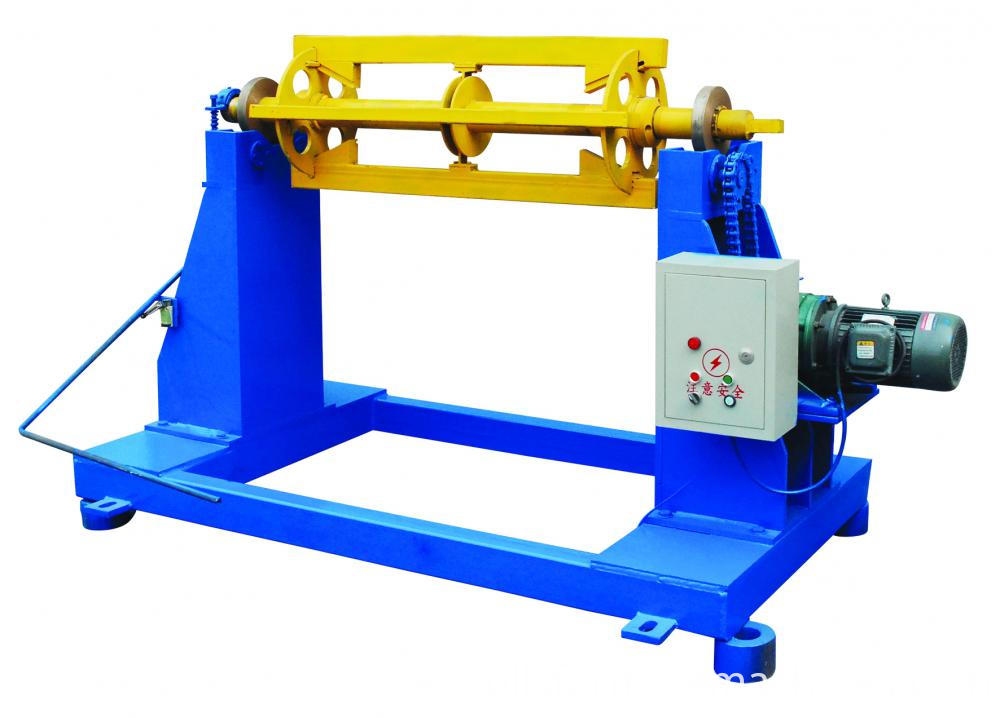

Uncoiler System

High Quality Standard Roofing Panel Roll Forming Machine

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1200 mm

Inner diameter: 450-550 mm.



Entry Beach

High Quality Standard Roofing Panel Roll Forming Machine

High Quality Standard Roofing Panel Roll Forming Machine


Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

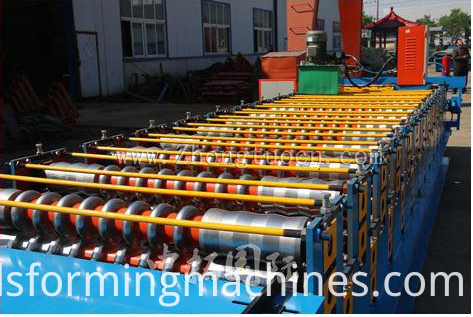

Main Roll Forming System

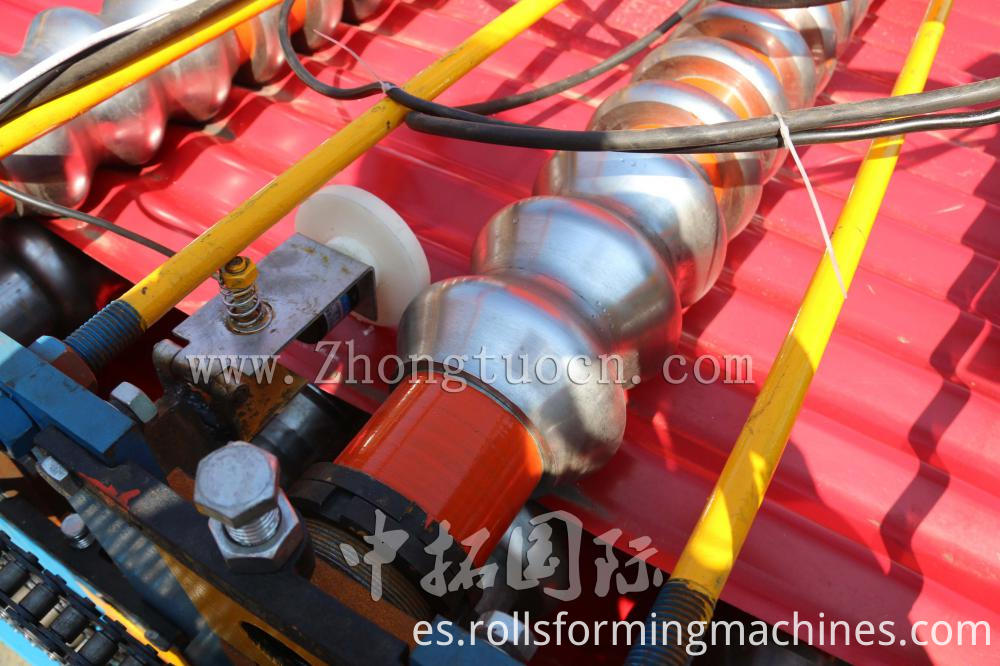

High Quality Standard Roofing Panel Roll Forming Machine

Size of the main part: about

8500 х 1650 х 1500

Weight of main part: 5. 5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 350 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 80 mm

Number of rollers : 15 rollers

Main power: 7.5 kw


Shearing Mechanism

High Quality Standard Roofing Panel Roll Forming Machine

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.



Hydraulic Station

High Quality Standard Roofing Panel Roll Forming Machine



It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job

Power: 4 kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1 sets of electromagnetism valves.

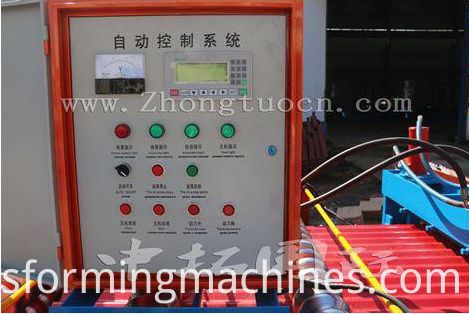

Electric Control System

High Quality Standard Roofing Panel Roll Forming Machine

Feature:

1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

If you need, we can change it other brand or little computer type for touching screen.


Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

High Quality Standard Roofing Panel Roll Forming Machine

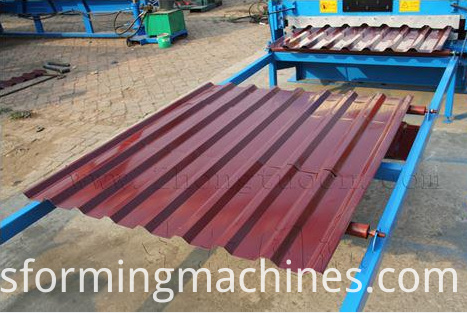

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m/set with 2 sets

High Quality Standard Roofing Panel Roll Forming Machine

Accessories

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

High Quality Standard Roofing Panel Roll Forming Machine

Payment terms

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 45 working days after receipt of deposit.


Warranty

1. Two years guarantee, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary, one technician needed.

4. Training time: one week (contains the time of installation and adjustment)
