Información básica

    Modelo: Zt-003-227

    Name: Corrugation Roofing Sheet Roll Forming Machine Met

    Material Of Rollers: 45# Steel, Surface Hard Chromium Plating

    Working Speed: 8-25 M/min

    Total Weight: About 5-7.5 T

    Total Power: 5.5-11 KW

    Roller Fixer: Middle Plate/guide Pillar

    Drive Mode: Chain

    Diameter Of Shafts: Φ70 Mm

    Number Of Rollers: 15 Rollers

    Control System: PLC

Información adicional

    Paquete: One 40GP

    productividad: 25m/min

    Marca: zhongtuo

    transporte: Ocean

    Lugar de origen: Hebei

    Capacidad de suministro: 30sets/month

    Certificados : CE/ISO9001

DDescripción


Corrugation Roofing Sheet Roll Forming Machine

Metal Roofing Sheet Making Machine


Brief Introduction of Zhongtuo Corrugation Roofing Sheet Roll Forming Machine Metal Roofing Sheet Making Machine:

Zhongtuo Corrugation Roofing Sheet Roll Forming Machine Metal Roofing Sheet Making Machine has been built since 1996. The roofing sheet roll forming machine is

one of the type used in roofing tile area. For catering to customer requirements, all machine elements will be customized according to customer detail requirement.

For now our machine could proce material thickness from 0.2-1.2mm, the working speed could reach 50m/min. And for the type of roofing sheet machine, there are

high level and normal type both in single layer and double layer.

Here is one example of machine for your reference:

Rollo de techo corrugado de forma la máquina y máquina formada rollo de chapa metálico

Components of Corrugation Roofing Sheet Roll Forming Machine Metal Roofing Sheet Making Machine:

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

7

Output table

set

1

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

Within 45 working days after receipt of deposit.

Packing

Nude packing with 1*40GP container

Warranty

One year, and we will provide the technical support for the whole life.

Installation

1. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)

Spare part

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Production parameters of Corrugation Roofing Sheet Roll Forming Machine Metal Roofing Sheet Making Machine

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.2- 1.2mm

Forming speed: 25m/min

Un-coiler System

Rollo de techo corrugado de forma la máquina y máquina formada rollo de chapa metálico

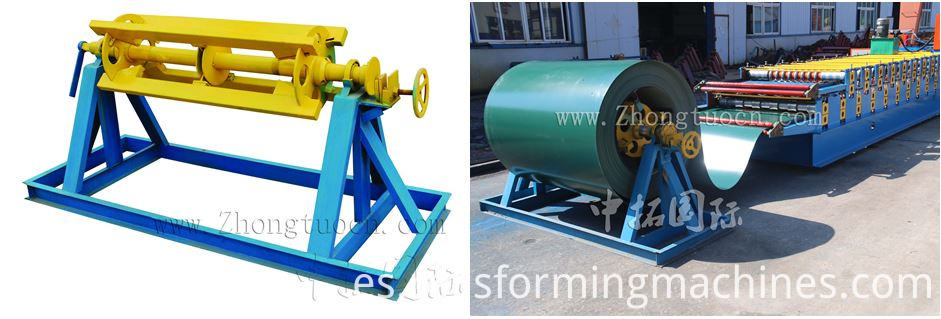

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1200mm

450-550mm

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Forming device

Rollo de techo corrugado de forma la máquina y máquina formada rollo de chapa metálico

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can

keep the molding plate surface smooth and not easy to be marked when it is working

Feature: Ensure stability, precision and lifetime.

No.

Main parameter

1

Length of the main part

About8200*1650*1500mm

2

Weight of main part

About3.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

diameter 80mm

11

Number of rollers

15 rollers

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Controlling device

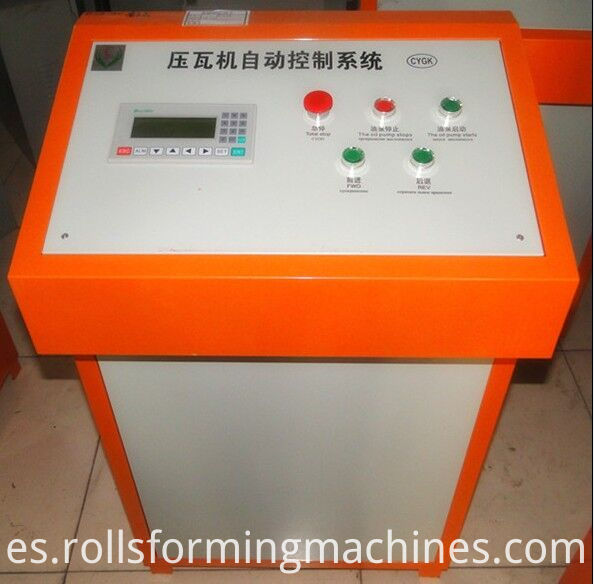

Rollo de techo corrugado de forma la máquina y máquina formada rollo de chapa metálico

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan or customiz

Hydraulic

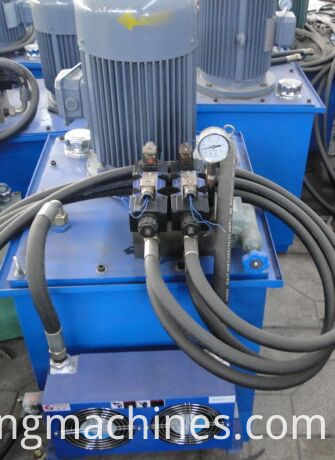

Rollo de techo corrugado de forma la máquina y máquina formada rollo de chapa metálico

(Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves)

Orgin

Power

Advanced hydraulic system from Taiwan

5.5kw


Company Information


ZT ( Zhongtuo Roll Forming Machinery Co., Ltd.) is a company specialising in the field of cold roll forming machines and metal sheet processing.

We are developing various cold roll forming machines for roof tiles making, ceiling metal frame and welding pipe machine, which are used in the

following areas like construction industry, automotive industry, packing industry. ZT factory was built in 1966 and its machins have been sold more than 50 countries,

so please trust us. With us, create your own cold roll forming.



Other Machines

What other roofing sheet machine we can make:

1. Glazed tile roll forming machine

2.Color metal roof and wall sheet

What makes our machine different with orthers?

1. Pay more attention to details. For the surface grinding, roller grinding, we would like to make it perfect smooth, as if so, the finished product surface will have scrach.

2. We customize machine stricktly according to the tech base not fully on the customer requirement as the tech team have more than 16 working experience. If some ideas is not pratical, we will point it out at the first time.

3. We presist that only high quality machine can make customer satified.

Here some knowledge about the roofing sheet roll forming machine:

1. How to make many different drawing profiles by one machine?

Normally speaking, one machine could produce many types drawing profile roofing sheet just by adjusting the roller spacer.

But if you do not have knowledge of machine, you can choose the double layer roll forming machines. For example, by double layer machine, you can either make round wave or

2.How to check roofing sheet machine quality?

When machine working, there will be finished product out, checking the edge of sheet can help you tell whether the machine swing or not when working.

Check the machine frame thickness, diameter thicknss, roller diameter and others can help you tell the machine quality.
