Wall Angle Channel Forming Machine

    Precio unitario: USD 15000 - 5000 / Set/Sets
    Tipo de Pago: L/C,T/T,D/P,Western Union,D/A
    Cantidad de pedido mínima: 1 Set/Sets
    Plazo de entrega: 30 días
Información básica

Modelo: ZT-006-119

Información adicional

Paquete: 20ft container

productividad: 10-30m/min

Marca: Zhongtuo

transporte: Ocean,Land,Air

Lugar de origen: China(mainland)

Capacidad de suministro: 30 sets per month.

Certificados : CE/ISO9001

DDescripción

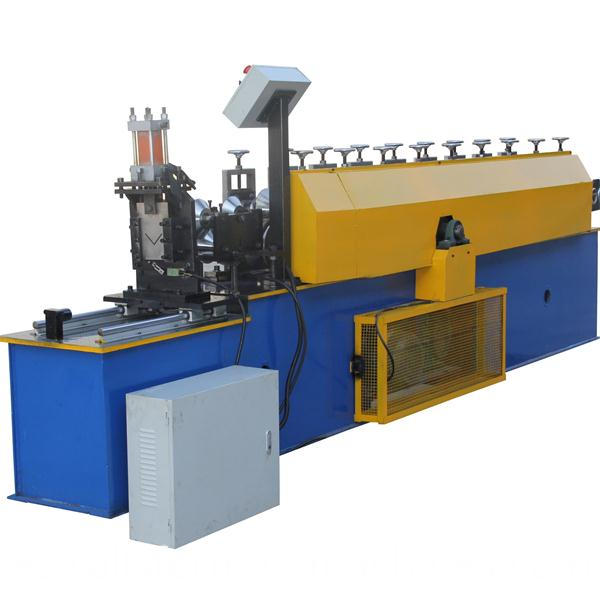

Wall Angle Channel Forming Machine

Support you money !! Support you service !! Support you technology !!

PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!


Wall Angle Channel Forming Machineis a strip of raw materials, through continuous cold rolling molding, production of complex cross-section profiles, which consists of decoiler, guide rack, forming hosts, calibration device, cut-off part, receiving station , composed of electrical control and so on. It is easy to use, easy to operate and so on.

Wall Angle Channel Forming Machine

Wall Angle Channel Forming Machine Material
Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.4---0.8mm
Material hardness: 550 mpa---350 mpa
Forming speed: 20m/min

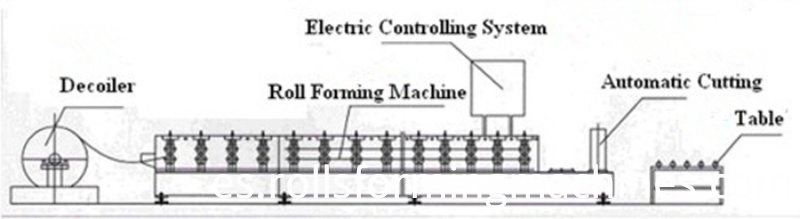

Wall Angle Channel Forming Machine Technological process

Uncoiler-feeding system-roll forming machine-cutting system-table

Wall Angle Channel Forming Machine

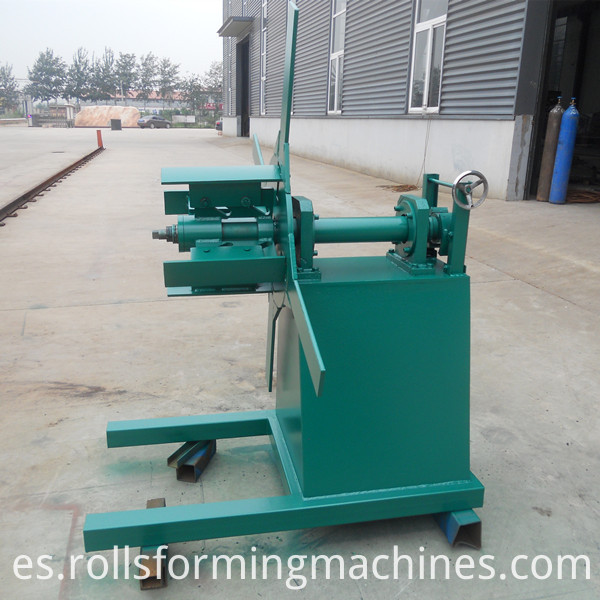

Wall Angle Channel Forming Machine Uncoiler system
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:1500kg
Uncoiling width:300mm

Inner diameter: 450-550 mm

Wall Angle Channel Forming Machine

Wall Angle Channel Forming Machine Entry Beach:
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

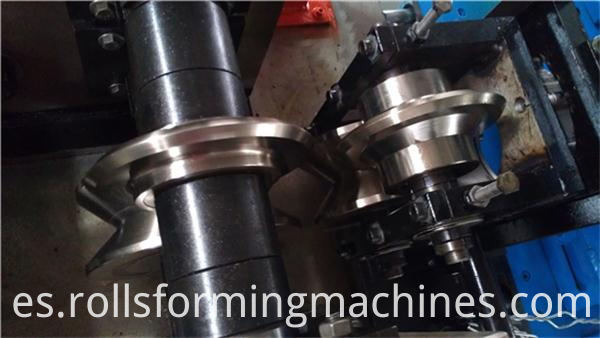

Wall Angle Channel Forming Machine Main Roll Forming System:
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 3000 х800 х1400
Weight of main part: 3000kg
Voltage : 380 V/50HZ 3Phase or as your required
Roller fixer : middle plate
Frame : 450 H steel welded
Drive mode: gear
Material of rollers:GCr12MoV, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 40mm
Number of rollers : 10 rollers

Main power: 3 kw

Wall Angle Channel Forming Machine

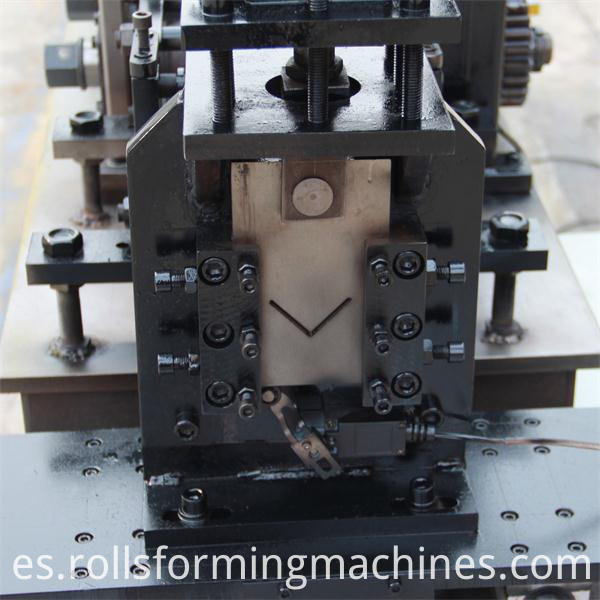

Wall Angle Channel Forming Machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power

Components:It contains one set of blade , one hydraulic tank and one cutter machine.

Wall Angle Channel Forming Machine

Wall Angle Channel Forming Machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 5.5 kw
Hydraulic oil: 46 #

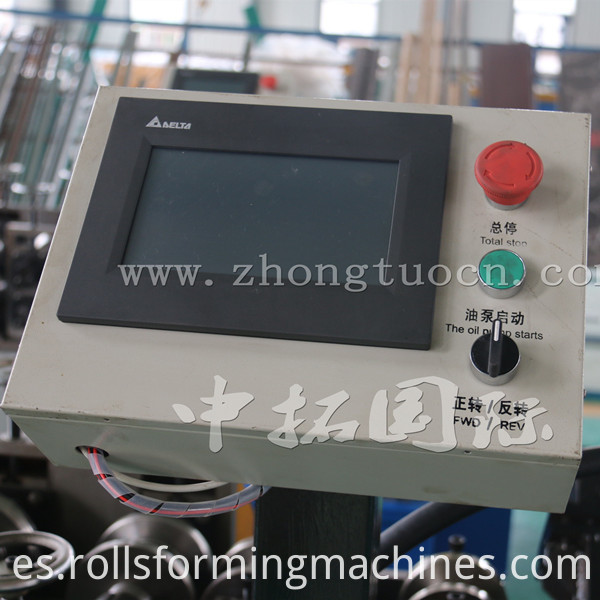

Wall Angle Channel Forming Machine Electric Control System:

1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic
Wall Angle Channel Forming Machine
Wall Angle Channel Forming Machine Warranty:
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)
